The Problem
When you had custom code to deploy in WSS v2, primarily Web Parts, you packaged them up in a Web Part Package using WPPackager for deployment on your servers. Unfortunately it wasn't the easiest tool to use, nor was it error-free. Thankfully Microsoft has abandoned the WPPackager utility in WSS v3 in favor solution files. A solution file is a Windows SharePoint Services solution package that is really just a CAB with a WSP extension. You can use solutions to deploy Web Parts & associated files (such as resource files, images, CSS, etc), add safe control entries, deploy the CAS policy changes, features, and so on… (read the documentation in the WSS SDK linked at the end of this post for more info).
The only downside is that building CAB files isn't the easiest or most straightforward thing to do. Visual Studio 2005 includes a setup project template that you can use to include another project's output, but it has two limitations… one very big one:
- It will only generate *.CAB files, even if you try to rename the settings, it will always generate a *.CAB file, but more importantly...
- It doesn't allow you to create subfolders in your *.WSP which localized deployments require.
Your other option is to get the Microsoft Cabinet SDK that includes the MakeCAB.EXE utility, craft a diamond directive file (*.DDF), and build the *.WSP that way. Yuck… there must be an easier way!
Overview
There is! With just a little work, you can configure your Visual Studio 2005 project, using MSBuild and MakeCAB.exe, to create the *.WSP file for you. Tony's post on how he did it to deploy a WSS v3 Feature shows one way to do this... I implemented a similar setup.
The process is actually quite simple. You'll create a new MSBuild targets file (basically an instruction file) that will execute the MakeCab.exe, passing in a DDF. You'll also need to create the DDF file that tells MakeCab.exe what it needs to build a CAB. Then you tell MSBuild that after it compiles the project, it needs to kick off the new targets file you created.
Prerequisite
You need to download and extract the Microsoft Cabinet SDK to your dev machine where you'll build this project. I extracted the contents of the SDK to c:\Program Files\Microsoft Cabinet SDK, but you can put yours anywhere you like (just make sure to make the appropriate changes to the custom targets file in step 5 below.
Modifying Visual Studio 2005 Projects to generate WSS v3 Solution Packages (*.WSP's)
In this article I'll walk through creating a simple feature that provisions a master page and preview image into the Master Page Gallery in a Publishing site. Steps 1-3 are nothing special… steps 4-6 utilizes the MakeCab.exe utility by leveraging MSBuild. It's these latter steps (4-6) that I consider customization steps… but it's only three steps!
Step 1 - Create a Visual Studio 2005 C# empty project
I'm not going to detail this step, here… all I've done is create a new Visual Studio 2005 project using the Empty Project template as shown in Figure 1.

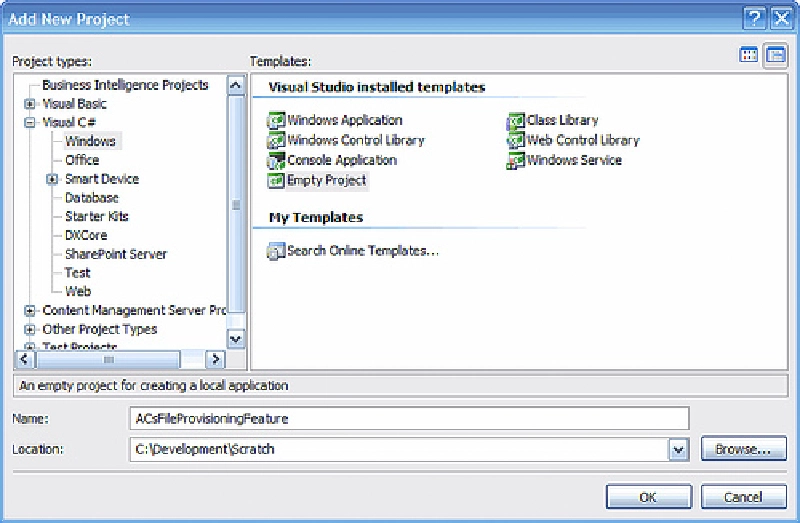

Figure 1 - Visual Studio 2005 Add Project Dialog
Step 2 - Add all files necessary for the feature
Nothing special here, just everything that you'll need for your feature. I just copy everything within the feature directory into the root of the project, then add them one by one to the project as existing items. You should how have a feature that looks like Figure 2.

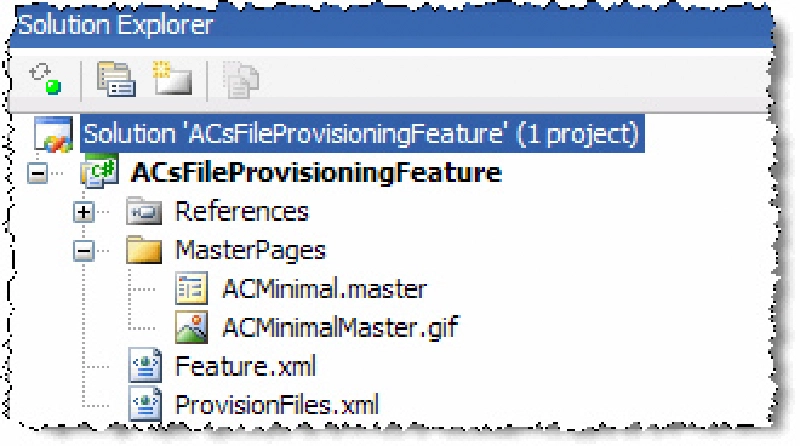

Figure 2 - Project containing feature files
Step 3 - Add a Manifest.XML file to the project
When you deploy your solution it must contain a manifest.xml file detailing everything that's in the WSP file. Since my feature is quite simple, my manifest file is quite simple as well as shown in Figure 3:
Figure 3 - Manifest.xml
Step 4 - Create a diamond directive file (*.DDF)
These are similar to *.INF files. DDF files are broken down into two parts: setting some variables and specifying the payload of the generated cabinet file. For all my DDF's, I use the same top part, up to the line of asterisks (a comment line). Next comes the payload.
Two things to note here: (1) files are relative to the current directory (the way I've set this up, it will always be the root of the project) and (2) when you want to create a subdirectory within the generated cabinet file, you need to set the DestinationDir variable. All files following that statement will be added to that subdirectory. Refer to Figure 4 to see the DDF file for our feature.
Figure 4 - SharePointFeaturePackage.ddf
Step 5 - Add custom MSBuild targets file
Now we need to create the instructions that we'll feed MSBuild to execute MakeCab.exe to generate our cabinet file. The first piece to this is in the opening
node. It tells MSBuild the default target to run (which we'll define in a moment). Next, it creates a custom property called MakeCabPath which contains the path to the MakeCab.exe utility.
Now for the meat & potatoes: the custom MSBuild targets instructions. You'll see two nodes which will execute one command each when we build our project. The first one calls MakeCab.exe passing in three parameters:
- DDF file: This is the instruction set for MakeCab.exe we created in the previous step. MakeCab.exe uses this to create the payload of the cabinet file.
- CabinetNameTemplate: This tells MakeCab.exe what to name the output cabinet file. This isn't something you can do with Visual Studio's CAB Project template!
- DiskDirectory1: This tells MakeCab.exe where to put the generated cabinet file.
Refer to
Figure 5 for the custom targets file. A few things to note here:
Step 6 - Modify project file to import & call custom targets file after building the project
Finally, the last step is to configure your project file so that MSBuild will run our instructions in our custom targets file instead of the default instructions. To do this, you need to unload the project by right-clicking it in the Solution Explorer tool window and selecting Unload Project (refer to Figure 6). Now, right-click the project again in Solution Explorer and select Edit [project name].csproj. Make the following changes:

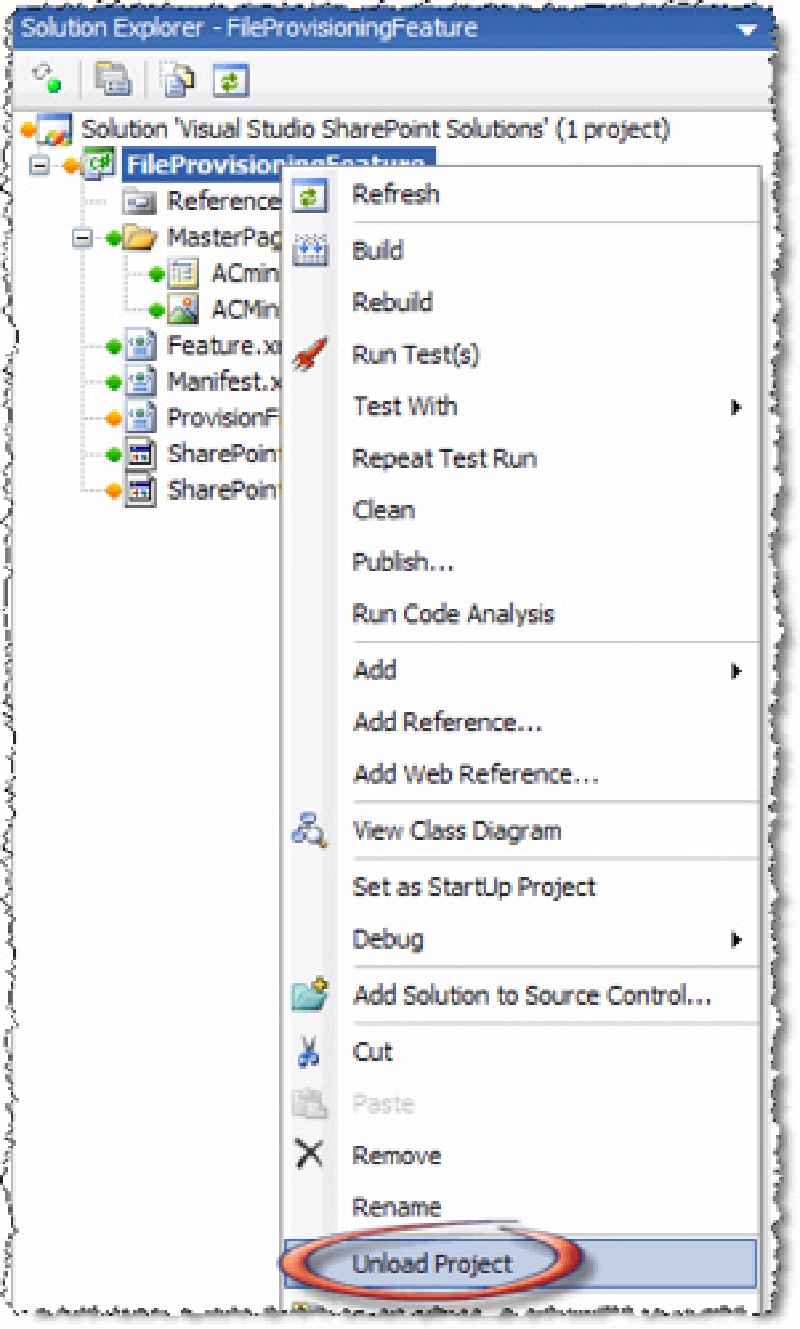

Figure 6 - Unloading a project
- Change the DefaultTargets attribute in the opening
node from Build to SharePointFeaturePackage.
- On (or about) line 31, change the node's Project attribute to SharePointFeaturePackage.Targets. This tells MSBuild to use our targets file, not the Csharp targets file (usually used for compiling).
Refer to
Figure 7 for what your project file should look like. Save your changes, then right-click the project in the
Solution Explorer window and select
Reload Project (if prompted with a security warning, select Load project normally).

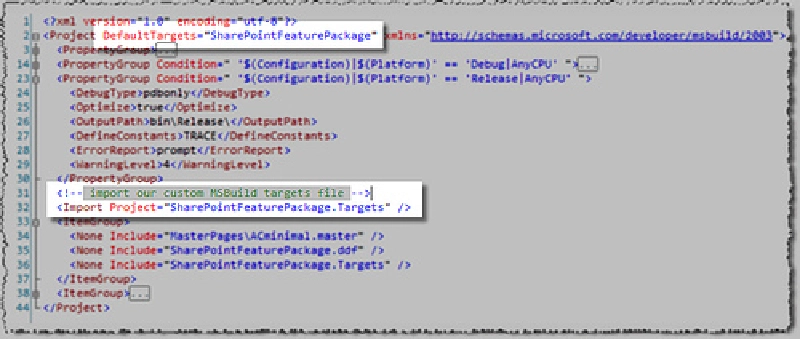

Figure 7 - Customized project file (*.csproj)
That's it! Now build your solution. When you look in your \bin\debug\SpPackage directory, you'll see two files, a *.CAB and a *.WSP. Use STSADM.EXE to add the solution to the solution store using the following command at a prompt:
STSADM -o addsolution -filename ACsFileProvisioningFeature.wsp
With your solution added to the solution store, you now need to deploy it. You can do that from the command line, or by going to Central Administration, selecting the Operations tab, then Solution Management under the Global Configuration section. Select your solution then click Deploy Solution. Once it's deployed, you should see your feature in the [..]\12\TEMPLATE\FEATURES directory.
Finally, browse to a Publishing site, select Site Actions -> Site Settings -> Modify All Site Settings, then select Site Collection Features under the Site Collection Administration and click Activate for your feature (in my case, it's called File Provisioning Feature Sample 1) to provision the files. Check the Master Page Gallery (Site Actions -> Manage Content and Structure, then select Master Page Gallery) and you should see your custom master page in the list as shown in Figure 8. Very cool!

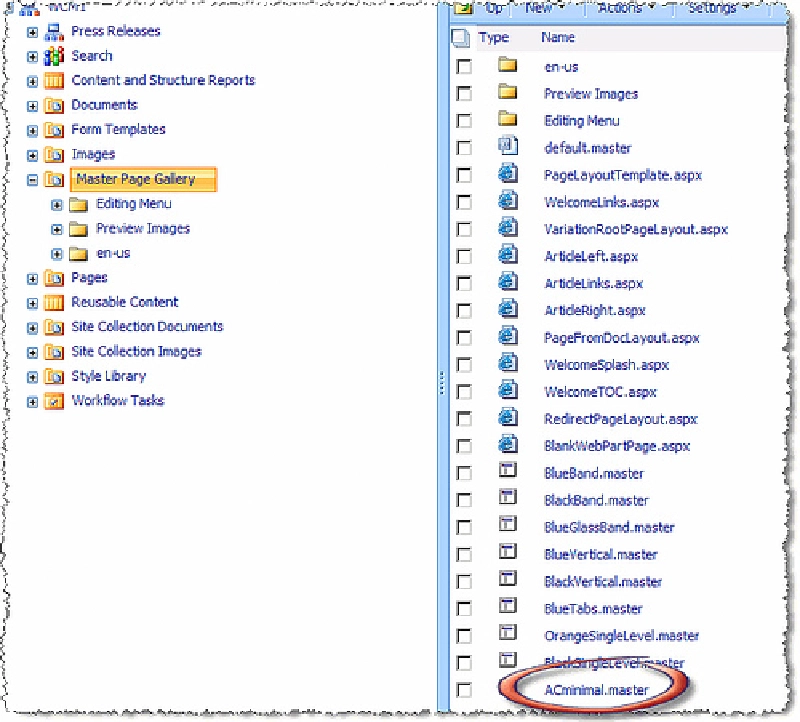

Figure 8 - Provisioned File!
You can download the project I used in writing this article here: ACsFileProvisioningFeature.
Extras
[Update 5/1/2008 @ 730a] I now have a Visual How To screencast on MSDN demonstrating the same process: http://msdn2.microsoft.com/en-us/library/cc441431.aspx
