Silverlight, MVVM & SharePoint - Working with Dialogs

I would like to discuss how to handle the appearance and actions of dialogs in the context of Silverlight, MVVM, and SharePoint to make it fully testable.

This post is part of a series on Silverlight, MVVM & SharePoint. The other posts in this series can be found here: Silverlight, MVVM & SharePoint

One thing I found tricky at first when learning MVVM was how to handle the case of dialogs. They are a fully UX capability but they also were used for things such as creating and editing items. I needed to find a way to get dialogs to appear but without being triggered from the UI rather from the view model, how to handle their actions and how to make all of that stuff fully testable!

Enter the MVVM Light Toolkit, specifically the Messenger capability I talked about previously in this series. The approach I take with MVVM is that you should strive for zero code in the code behind of the XAML files (aka: zero code in the UI). But how to launch a dialog. Well, is it OK if there is code in the XAML code behind if it is 100% view related but not application related? I think so… so here’s how I do it:

  • When I want to show a dialog, I broadcast a message from the view model.
  • In the code behind for the hosting view (the XAML file), I have the Messenger listen for that message.
  • When that message is received, I show the dialog.
  • When the dialog closes, if the user clicked OK, I run some code… the code that was defined as an action (aka: the callback) in the message as defined in the view model!

Confused? OK… here’s how I broadcast the message (such as when the user clicks the button to show the app settings ). It is a command that broadcasts the message:

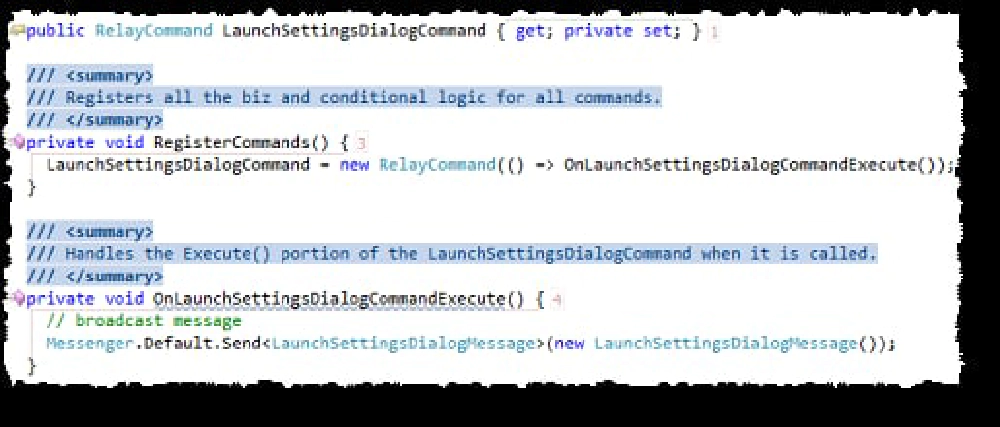

Broadcasting the Message

Broadcasting the Message

The LaunchSettingsDialogMessage is just a subclassed version of the DialogMessage. I could add more properties to it, but I just wanted a named object. Next up, look at the main view’s code behind. In the constructor it registers a listener for this message and when it gets it, it launches a dialog:

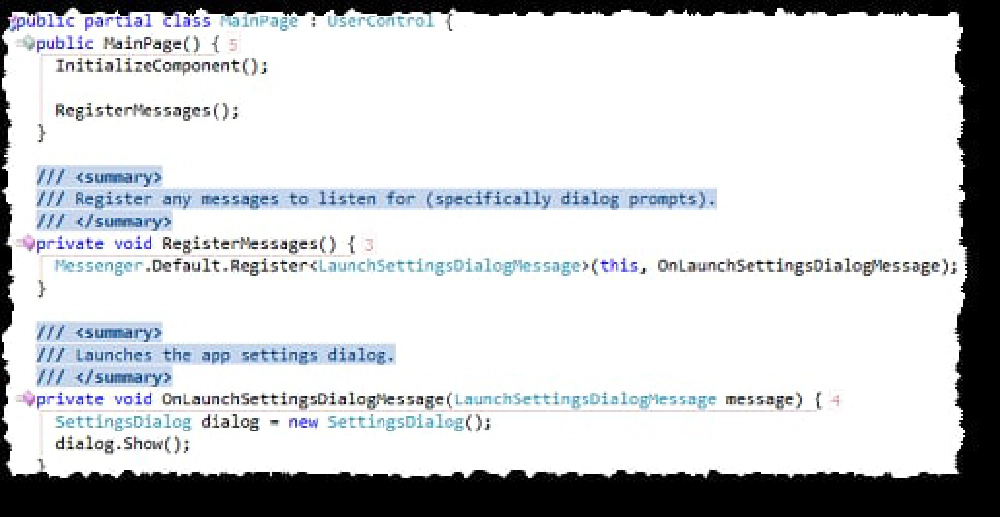

Registering an event listener

Registering an event listener

Now, let’s just hypothetically assume that this dialog wanted to go and run some code after the dialog closed. When I created the LaunchSettingsDialogMessage, one of the parameters you pass in is an action, or the code run whenever the receiver wants. Then, the receiver can call the code by calling message.Execute() and that will run the code saved in the message to run.

Best of all, this is fully testable! How? Well when you create the test, YOU create the listener for the message and you listen for it. So for instance, here’s a test that verifies the message was broadcast by the command and received by any listeners:

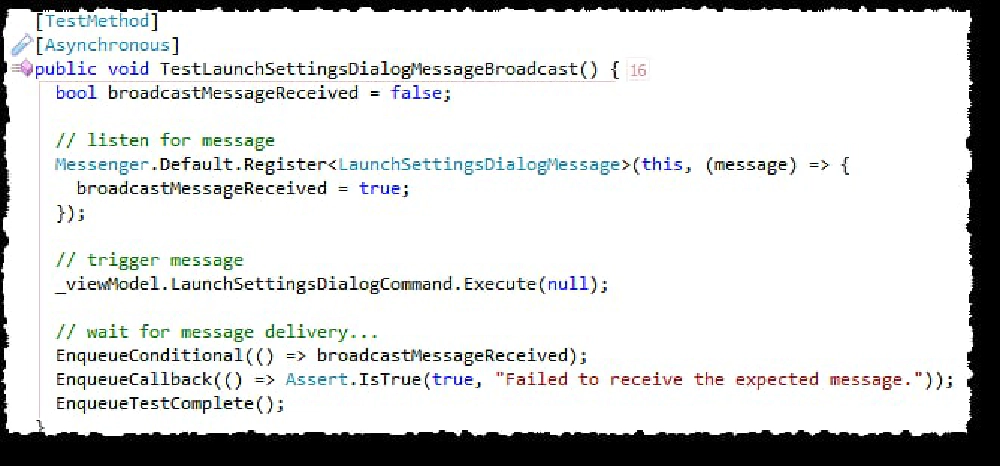

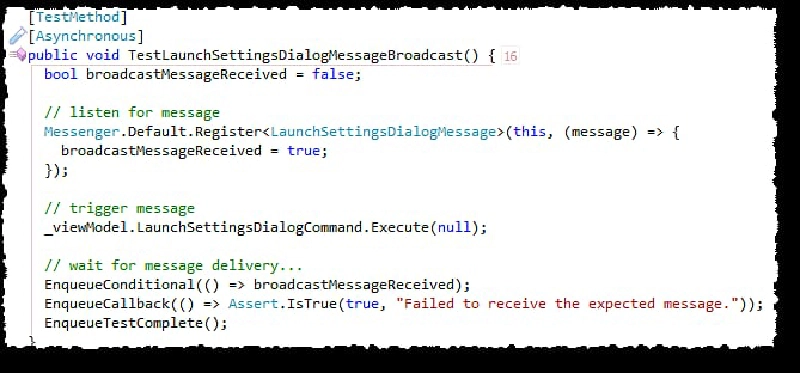

Testing the message was broadcast

Testing the message was broadcast

In my next post I’ll talk about unit testing a Silverlight application, specifically one that has async calls in it that you need to test and the challenges associated with that. But here you can see how easy it is to test the messages are flowing from another app.
